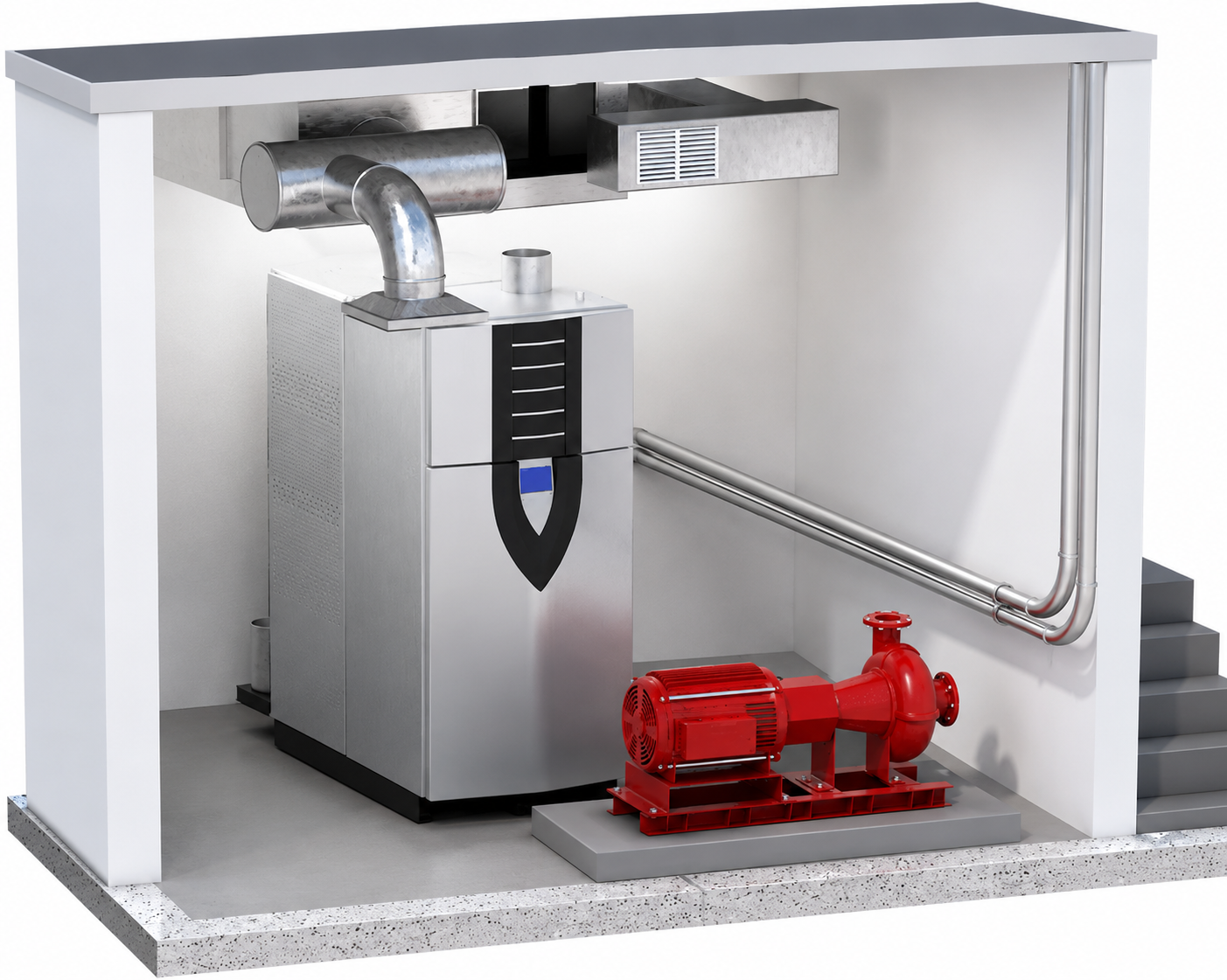

Mechanical Room

Selected Measuring Point

Gas Detection Sensors and Control Panels

Gas levels are monitored to ensure occupant safety and prevent hazardous conditions in the mechanical room.

Conceptual application view. Not for installation design.

Relevant Products8 products

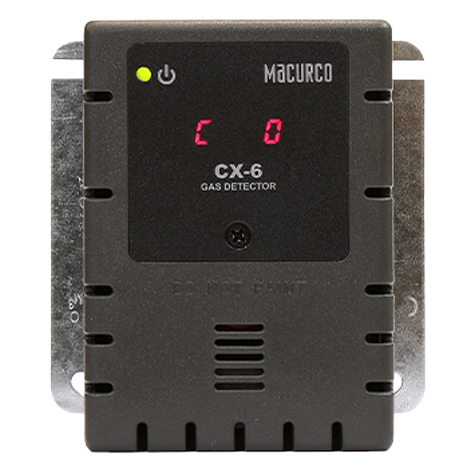

Macurco CX-6 Standalone Detector and Controller ETL Listed to UL 2075 & ETL Listed to UL 61010-1 (CAN/CSA C22.2 No. 61010-1); City of Los Angeles Approved

0-200 ppm, 4-20 mA Analog Output, 5A Fan Relay, 0.5A Alarm Relay, Adjstable Alarm Levels, LED Display, Optional Communications Adaptor

Product Data sheet Drawing

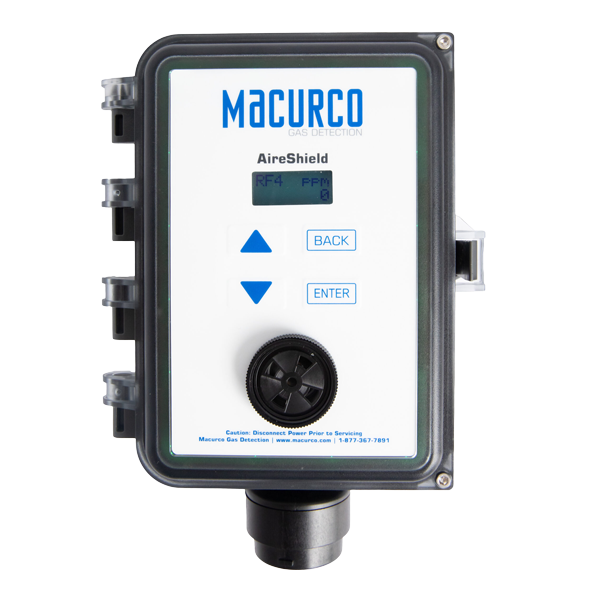

Macurco Aireshield IR Infrared Analog or Digital Refrigerant Detector

NEMA 4X/IP65 Enclosure, Optional Buzzer, 4-20 mA & 0-20 mA Outputs, Modbus RTU Communication, 5A SPDT Relay, 0.5A Alarm Relay, Colored Notification LED

Product Data sheet Video

Dwyer Series GSTA/GSTC Carbon Monoxide & Nitrogen Dioxide Gas Transmitters

Electrochemical Sensor; Universal Current & Voltage Outputs; Optional Modbus & BACnet Communications & Display

Product Data sheet Video

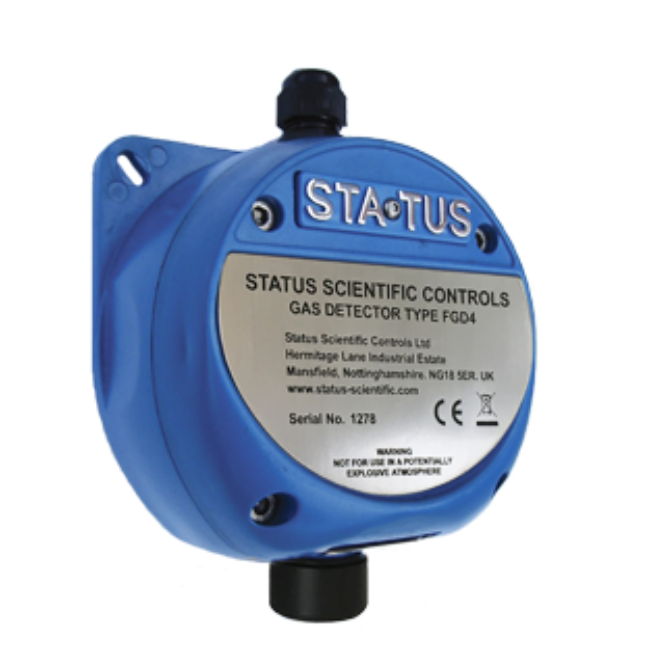

Dynament Series FGD4 Loop Powered Safe Area Gas Detectors

Toxic Gas Detection with IR & Electrochemical Gas Sensors

Product Data sheet Drawing

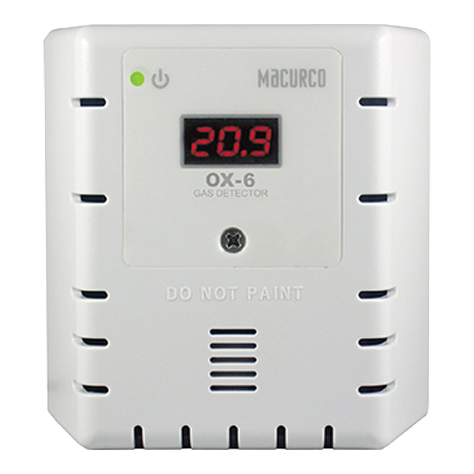

Macurco O2 Standalone Detector and Controller

0-25% by Volume; 4-20 mA Output, 5A Fan Relay, 0.5A Alarm Relay, Adjustable Alarm Levels, LED Display, Optional Communications Adaptor, ETL Listed (UL 61010-1 & CAN/CSA C22.2 No 61010-1)

Product Data sheet Drawing

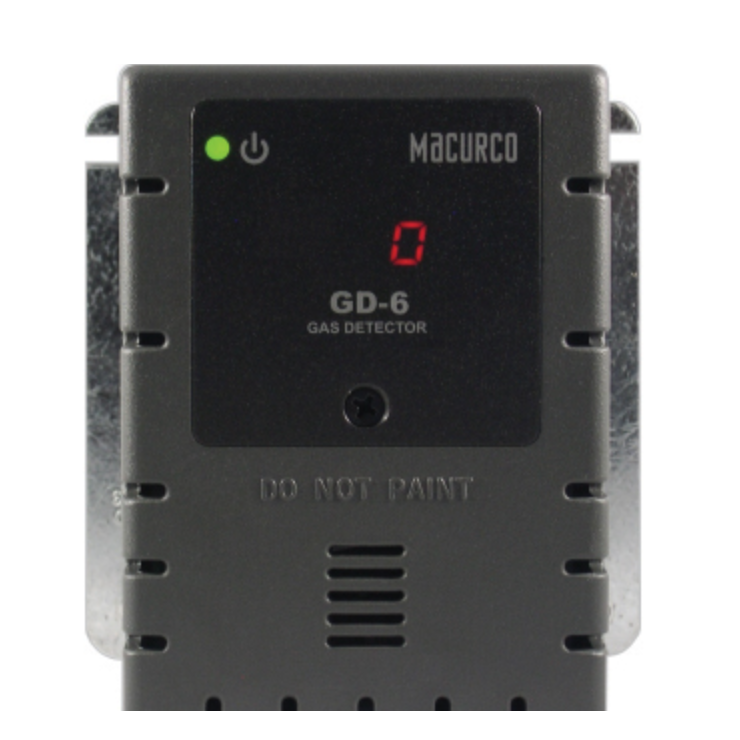

Macurco Series GD-6 Combustible Methane(Natural Gas)/Propane/Hydrogen Fixed Gas Detector, ETL Listed to UL 61010-1 and CAN/CSA C22.2 No 61010-1

0-50% LEL, 4-20 mA Analog Output, 5A Fan Relay, 0.5A Alarm Relay, Adjstable Alarm Levels, LED Display, Optional Communications Adaptor

Product Data sheet Drawing

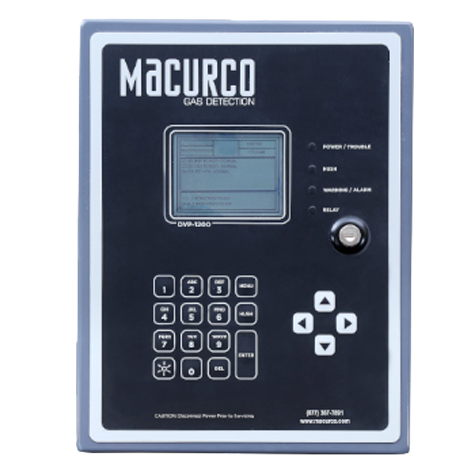

Macurco Gas Detection Standalone Control Panel (Expandable to 192 Addressable Detectors)

(3) analog Outputs, (4) Relays , (4) 24 VDC Drivers,NEMA 4X Enclosure, (8) Zones, BACnet IP Communication; ETL Listed, City of Los Angeles Approved

Product Data sheet Drawing Video

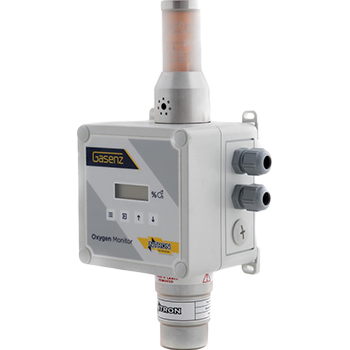

Ntron Oxygen(O2) Standalone Detector and Controller , Electrochemical or Zirconia Sensor Option; (ETL Listed to UL 61010-1 REC / CAN/CSA-C22.2 No. 61010-1 REC & EMC: EN 50270)

0-25% by Volume; 24 VDC or 85-230 VAC (50/60 Hz), 4-20 mA Output, 5A Off (Dry Contact) Relay, 2 Relays for Audible & Visual Alarms, LCD Display, Digital RS232 Communications

Product Data sheet Drawing
