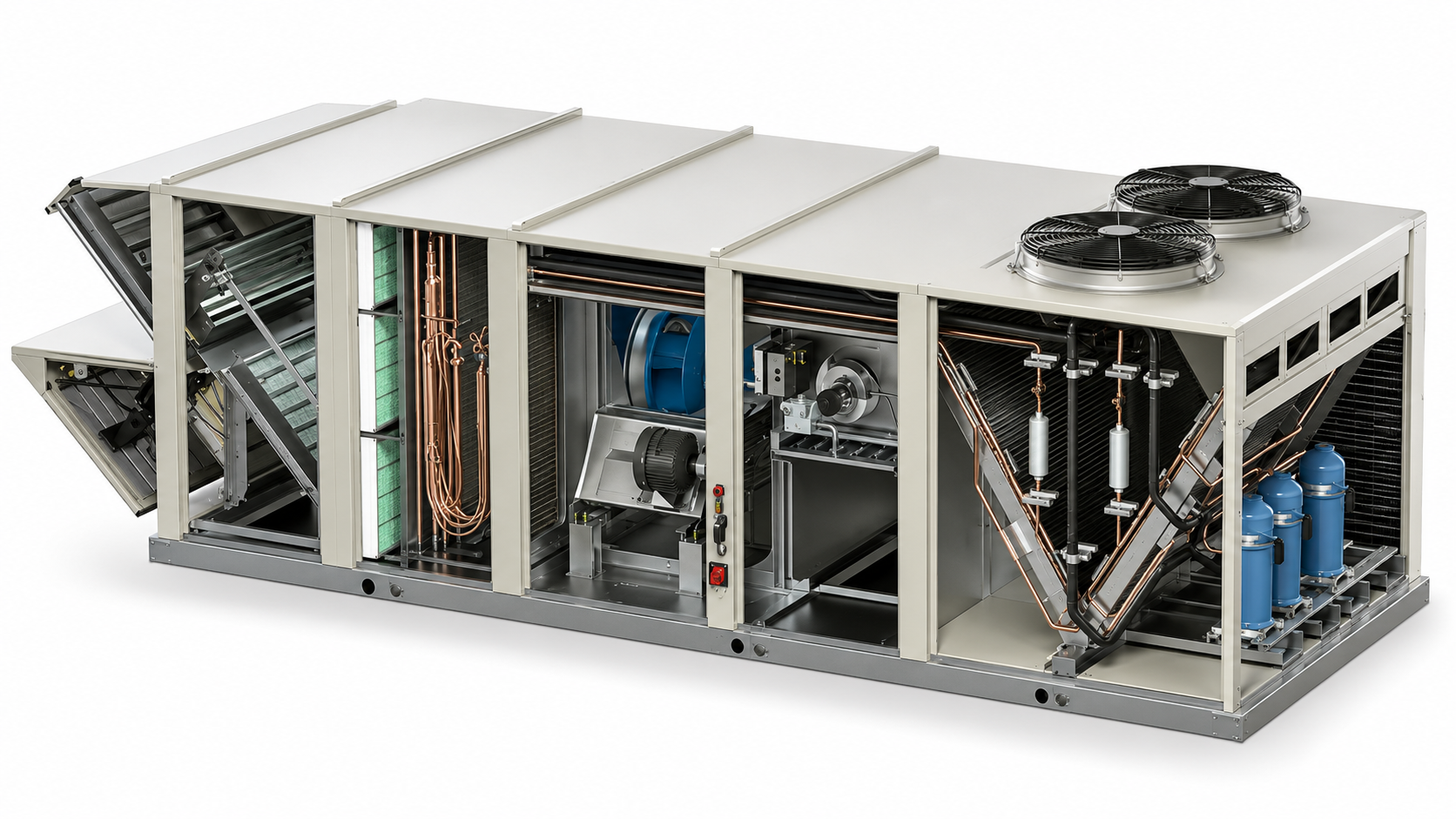

Air Handling Unit

Selected Measuring Point

Differential Pressure Transmitters

These transmitters monitor pressure differences across filters and coils to maintain optimal airflow and efficiency.

Conceptual application view. Not for installation design.

Relevant Products10 products

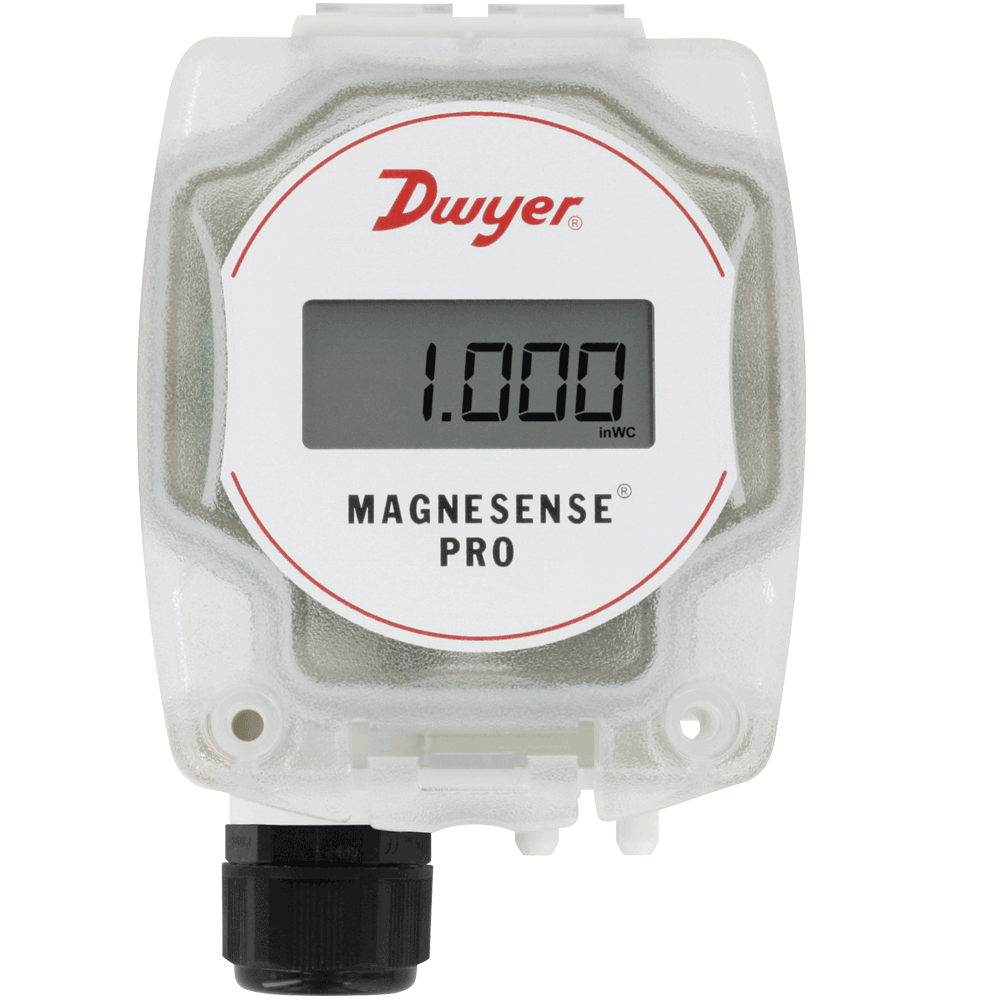

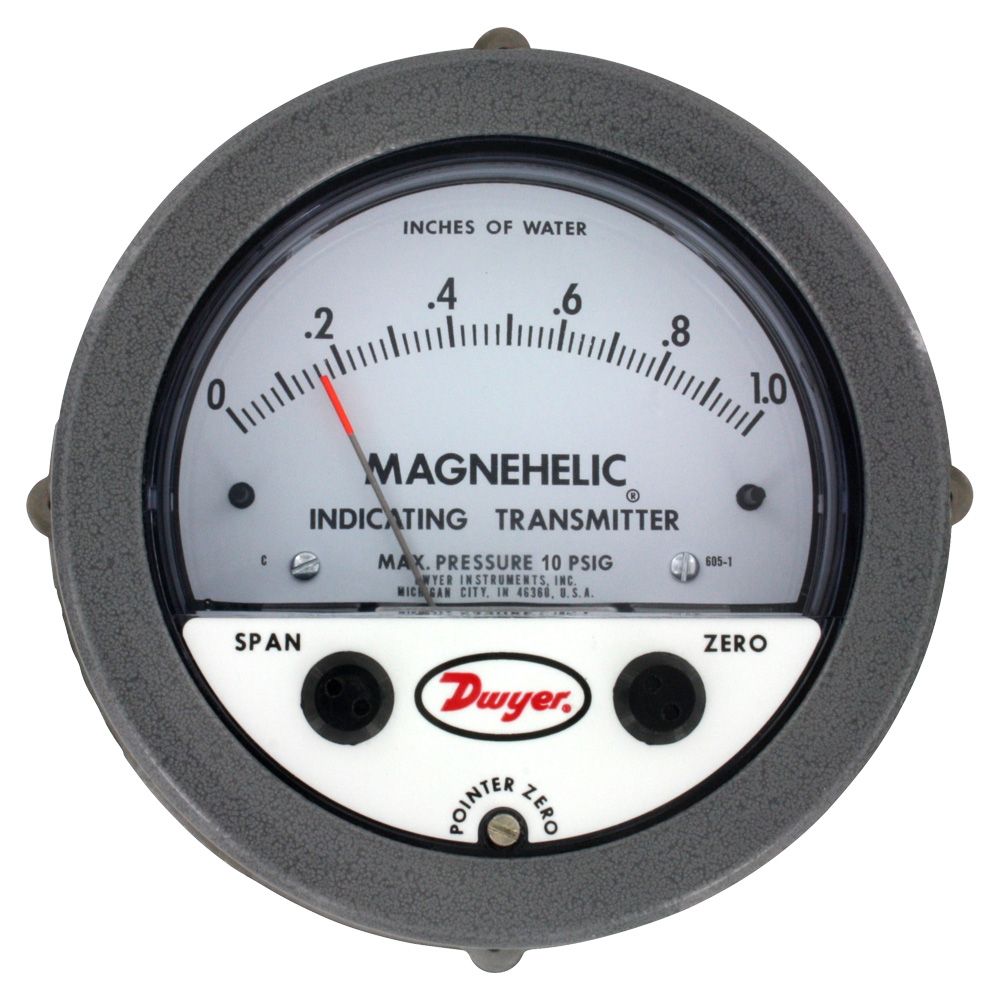

Visual Monitoring & Electronic Control; 4-20 mA Output; 10 to 35 VDC Supply Voltage

Monitor Pressure Air & Compatible Gases; Accuracy +/- 1% or 2% FS; 4-20 mA Output

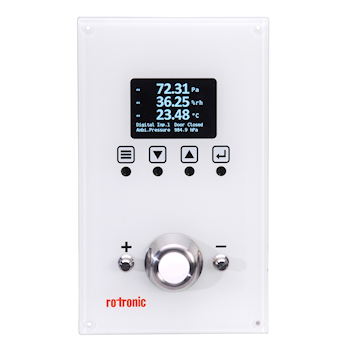

Precise Measurement Differential Pressure, Humidity, Temperature; High Degree Cleanliness Required; FDA & GAMP Compatible

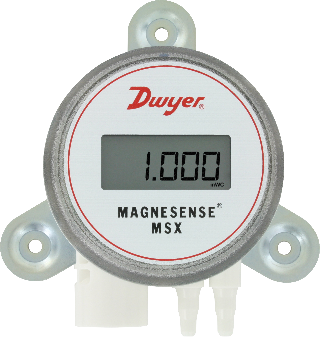

Wall & Duct Mount; Differential Pressure & Velocity with Square Root Extractor; Accuracy +/- 1% FSO; Field Selectable Ranges & Output

Wall & Duct Mount; Differential Pressure & Velocity w/ Square Root Extractor; +/- 0.5% FSO; Field Selectable Ranges & Outputs

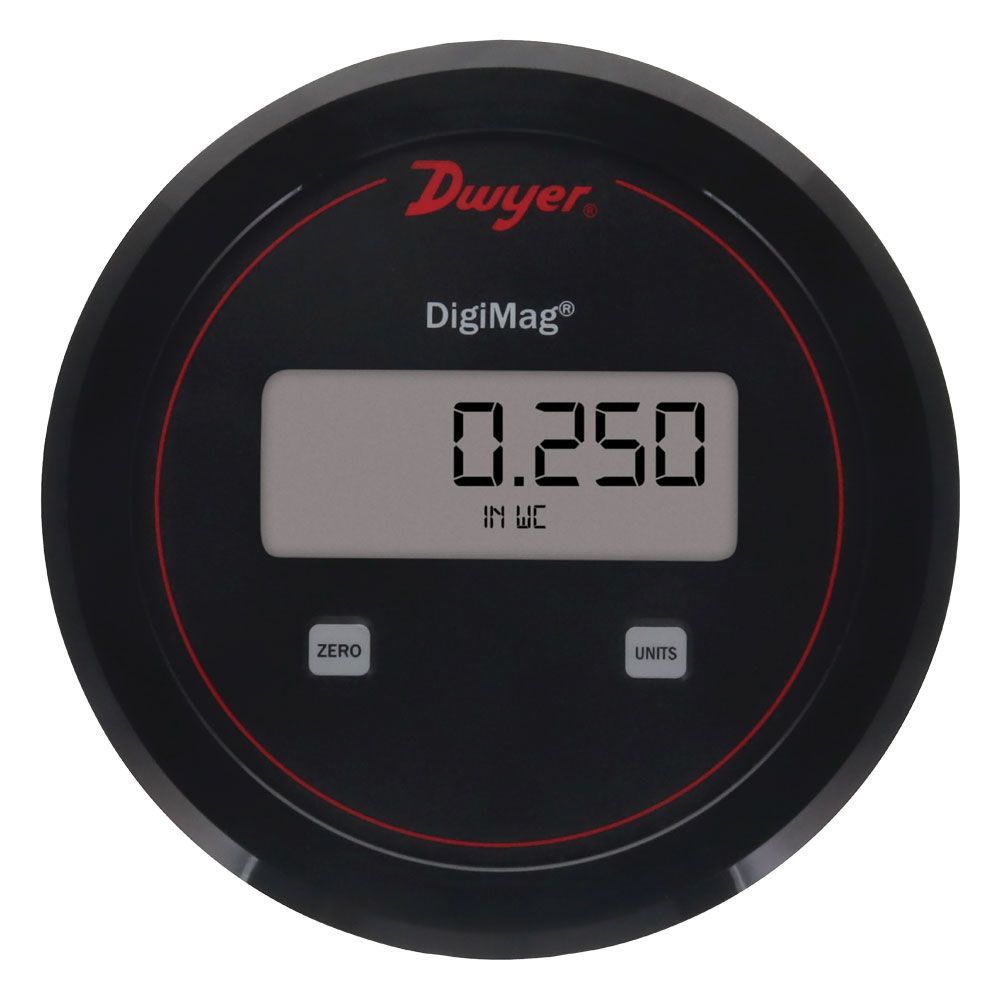

Panel Mount; Differential Pressure; Accuracy +/- 0.50% FS (+/- 0.25% FS Optional); Specify Pressure Range & Output

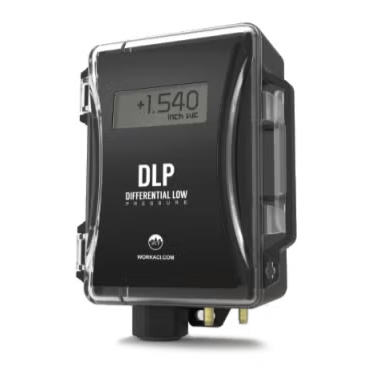

Wall and Duct Mount; Differential Pressure; Accuracy +/- 0.50% FS (+/- 0.25% FS Optional); Field Selectable Ranges & Outputs

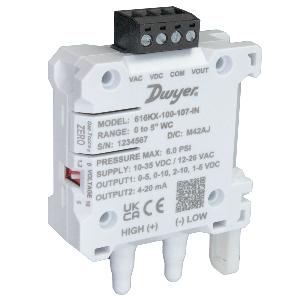

'+/- 0.25%, 0.5%, 1% or 2% Accuracy; Push Button Zero; 4-20mA & Selectable Voltage Output

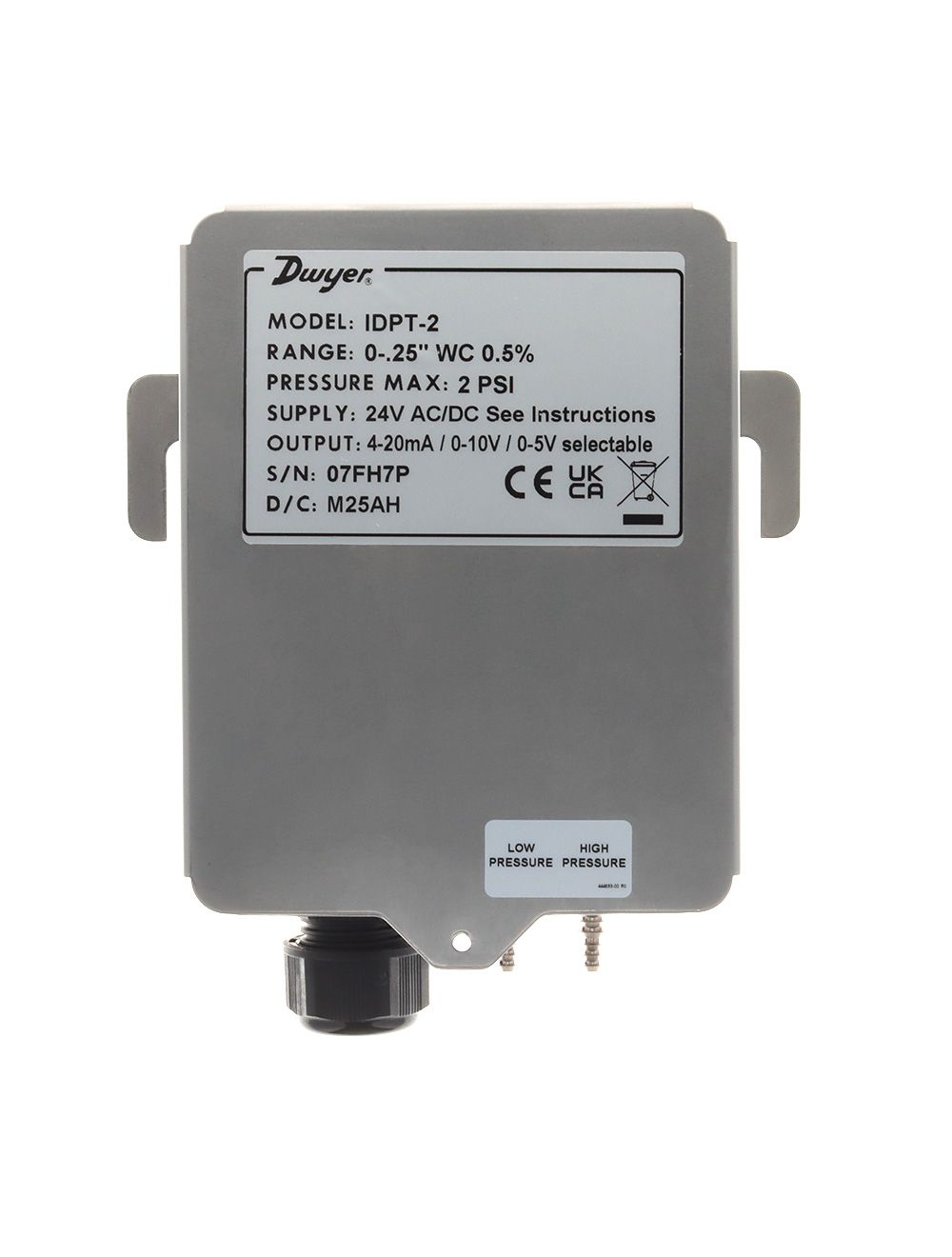

Critical Differential Pressure; Accuracy +/- 0.5% FS (Optional +/- 0.25% FS); 4-20 mA or VDC Output

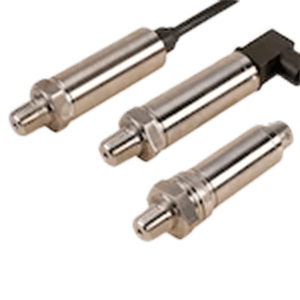

Accuracy +/- 0.08% or 0.05% Best Fit Straight Line; 4-20mA or Voltage Output; PSIG, BAR, PSIA, Vacuum, Compound, Sealed Gage Ranges
