Air Handling Unit

Selected Measuring Point

Differential Pressure Transmitters

These measure pressure differences to monitor filter loading and fan performance for efficient air handling.

Conceptual application view. Not for installation design.

Relevant Products11 products

Visual Monitoring & Electronic Control; 4-20 mA Output; 10 to 35 VDC Supply Voltage

Monitor Pressure Air & Compatible Gases; Accuracy +/- 1% or 2% FS; 4-20 mA Output

Measure & Monitor Differential Pressure in Clean Rooms, Food & Pharma; Accuracy +/- 1% FSS

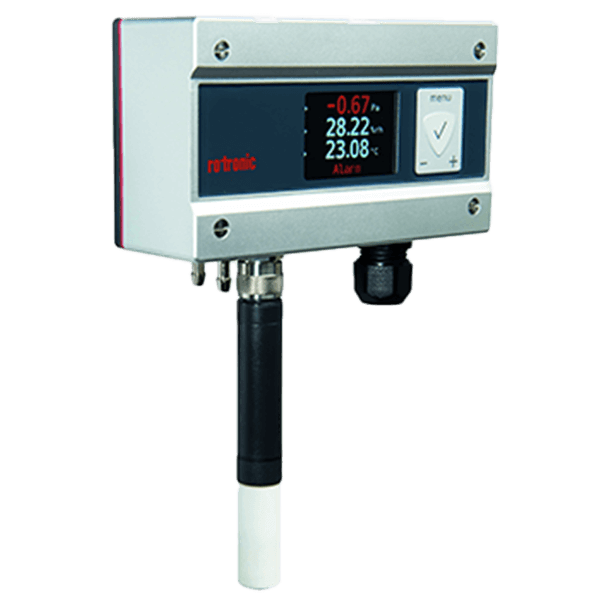

Precise Measurement Differential Pressure, Humidity, Temperature; High Degree Cleanliness Required; FDA & GAMP Compatible

Wall & Duct Mount; Differential Pressure & Velocity with Square Root Extractor; Accuracy +/- 1% FSO; Field Selectable Ranges & Output

Wall & Duct Mount; Differential Pressure & Velocity w/ Square Root Extractor; +/- 0.5% FSO; Field Selectable Ranges & Outputs

Panel Mount; Differential Pressure; Accuracy +/- 0.50% FS (+/- 0.25% FS Optional); Specify Pressure Range & Output

Wall and Duct Mount; Differential Pressure; Accuracy +/- 0.50% FS (+/- 0.25% FS Optional); Field Selectable Ranges & Outputs

'+/- 0.25%, 0.5%, 1% or 2% Accuracy; Push Button Zero; 4-20mA & Selectable Voltage Output

Critical Differential Pressure; Accuracy +/- 0.5% FS (Optional +/- 0.25% FS); 4-20 mA or VDC Output

Accuracy +/- 0.08% or 0.05% Best Fit Straight Line; 4-20mA or Voltage Output; PSIG, BAR, PSIA, Vacuum, Compound, Sealed Gage Ranges
