Midstream Refinery

Selected Measuring Point

Pressure Transmitters & Switches

Pressure transmitters and switches monitor pressure levels to ensure safe and efficient operation of refinery processes.

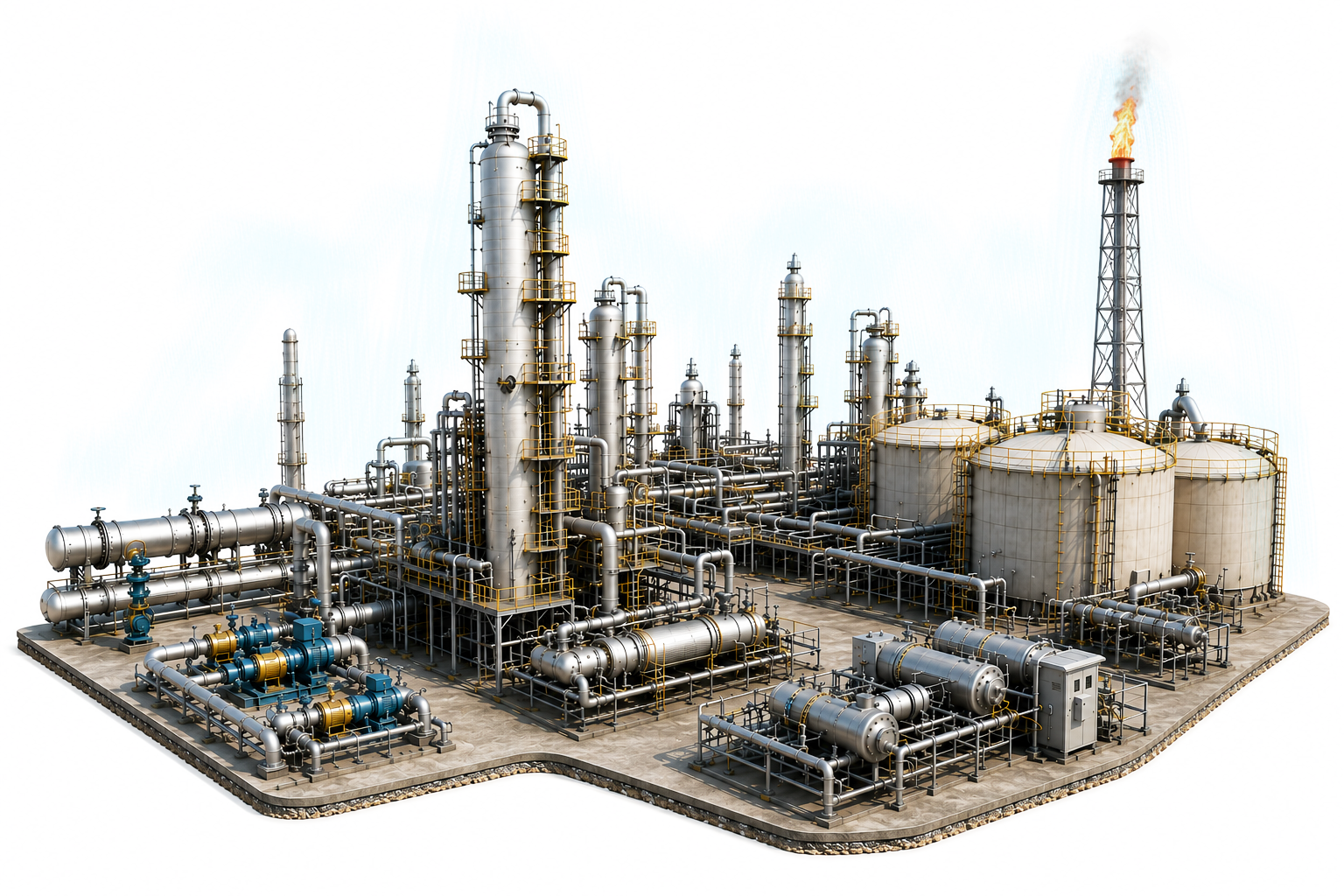

Conceptual application view. Not for installation design.

Relevant Products8 products

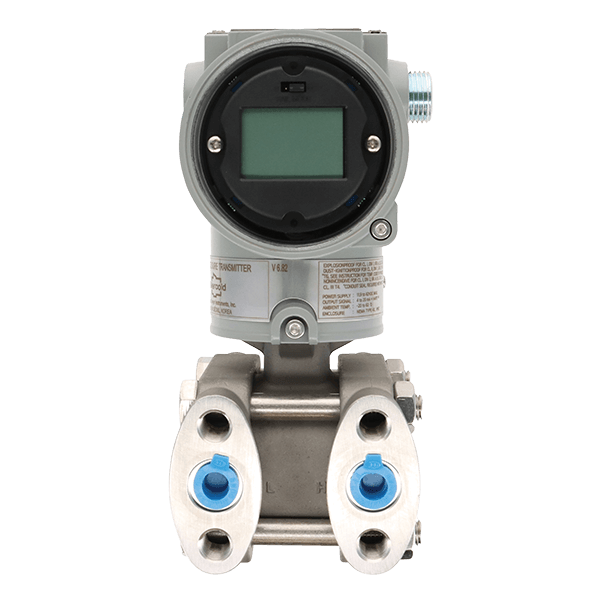

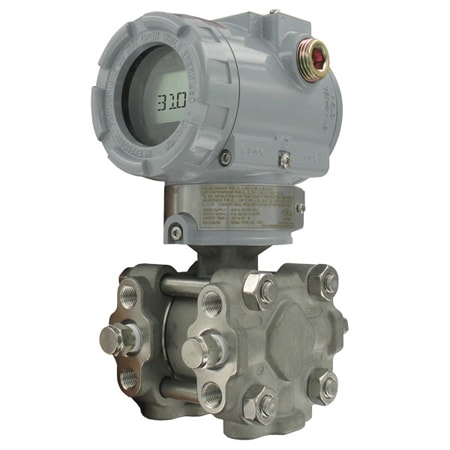

Smart Differential Pressure Transmitter; HART®, Hazardous Area Rated

Push button Configuration; ±0.075% FS Accuracy; 100:1 Rangeability; 4-20 mA with HART®; Hazardous Location Rated

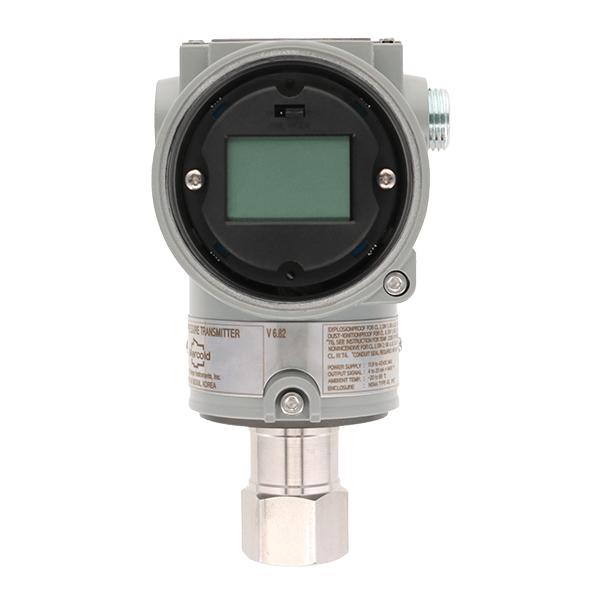

Explosion‑Proof Pressure Transmitter; ±0.075% FS High Accuracy

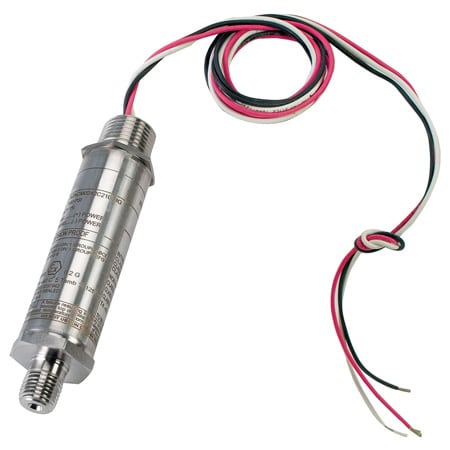

Explosion & Flame Proof Rated; ±0.5% Accuracy; 4-20 mA Output; 316 SS Wetted Parts; cULus, FM & ATEX Approved

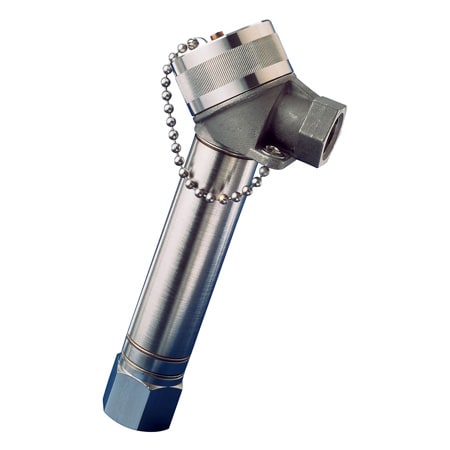

PX880 Industrial Pressure Transmitter; ±0.2% Accuracy; 4-20 mA Output; Welded 316 SS; FM & CSA Hazardous Location Approved"

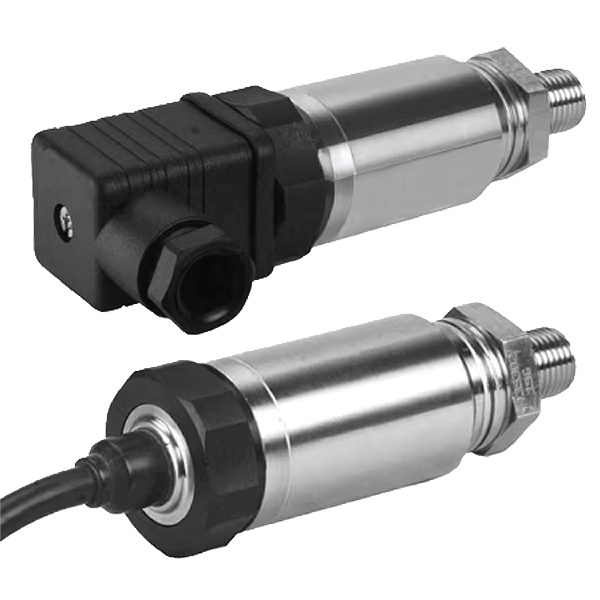

0.08% Accuracy; 4 to 20 mA Output with FM Intrinsically Safe Rating

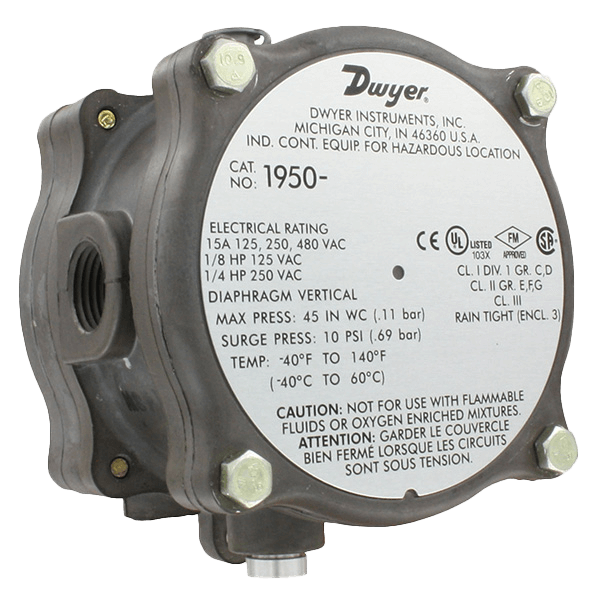

One SPDT Form 1C Relay (N/O & N/C Selectable); 1/8" Female NPT; Weather Proof; Combustible & Non-Corrosive Dry Gases

One SPDT Form 1C Relay (N/O & N/C Selectable); 1/8" Female NPT; Air or Non-Corrosive Compatible Dry Gases
