Effluent Discharge & Environmental Compliance

Selected Measuring Point

Effluent & Distribution Line Flow

Flow meters measure treated water moving through distribution, reclaimed water and effluent lines.

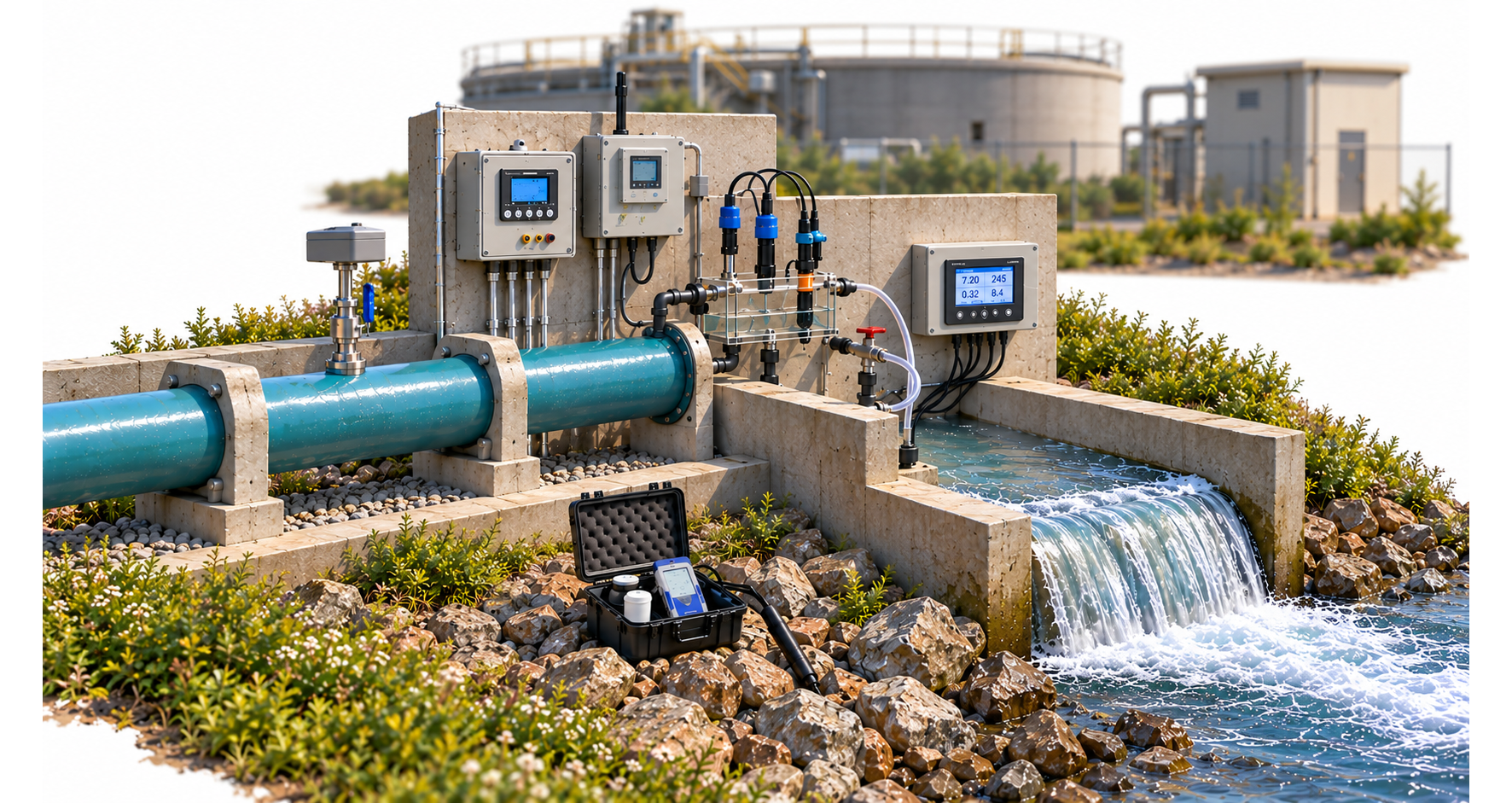

Effluent Discharge & Environmental Compliance application diagram

Conceptual application view. Not for installation design.

Relevant Products3 products

Dwyer Series IEF Insertion Electromagnetic Flow Transmitter

Accurate & Reliable Fluid Velocity Measurement; Flow 0-20 ft/s (0-6 m/s); Current, Voltage, Pulse Outputs; Alarms; Optional BACnet & Modbus

Product Data sheet Drawing Video Playbook

Playbook access requires a Seismic license.

Dwyer Series-PFT Paddlewheel Flowmeters for Liquid Monitoring, Brass/316 SS, 4-20 mA Output

Paddlewheel Flowmeter for Liquids; IP67, Up to 25 ft/s

Product Data sheet Drawing Video Playbook

Playbook access requires a Seismic license.

Series FDT-25W Ultrasonic Flow Meter

Permanent metering for lift stations, pump discharge, plant sub-metering, and chilled water loops; Wall-mount transmitter with remote clamp-on transducers, ±1% accuracy, and 4-20 mA and RS-485 outputs; Wall-mount clamp-on ultrasonic flow meter for permanent, non-invasive pipe flow measurement; Retrofits onto existing pipe in place of an inline meter — no cutting, no flanges, no wetted parts

Product Data sheet
