Center Pivot Irrigation

Selected Measuring Point

Current Sensors & Switches

Monitors electrical current to detect pump motor status or irrigation system faults, ensuring operational reliability.

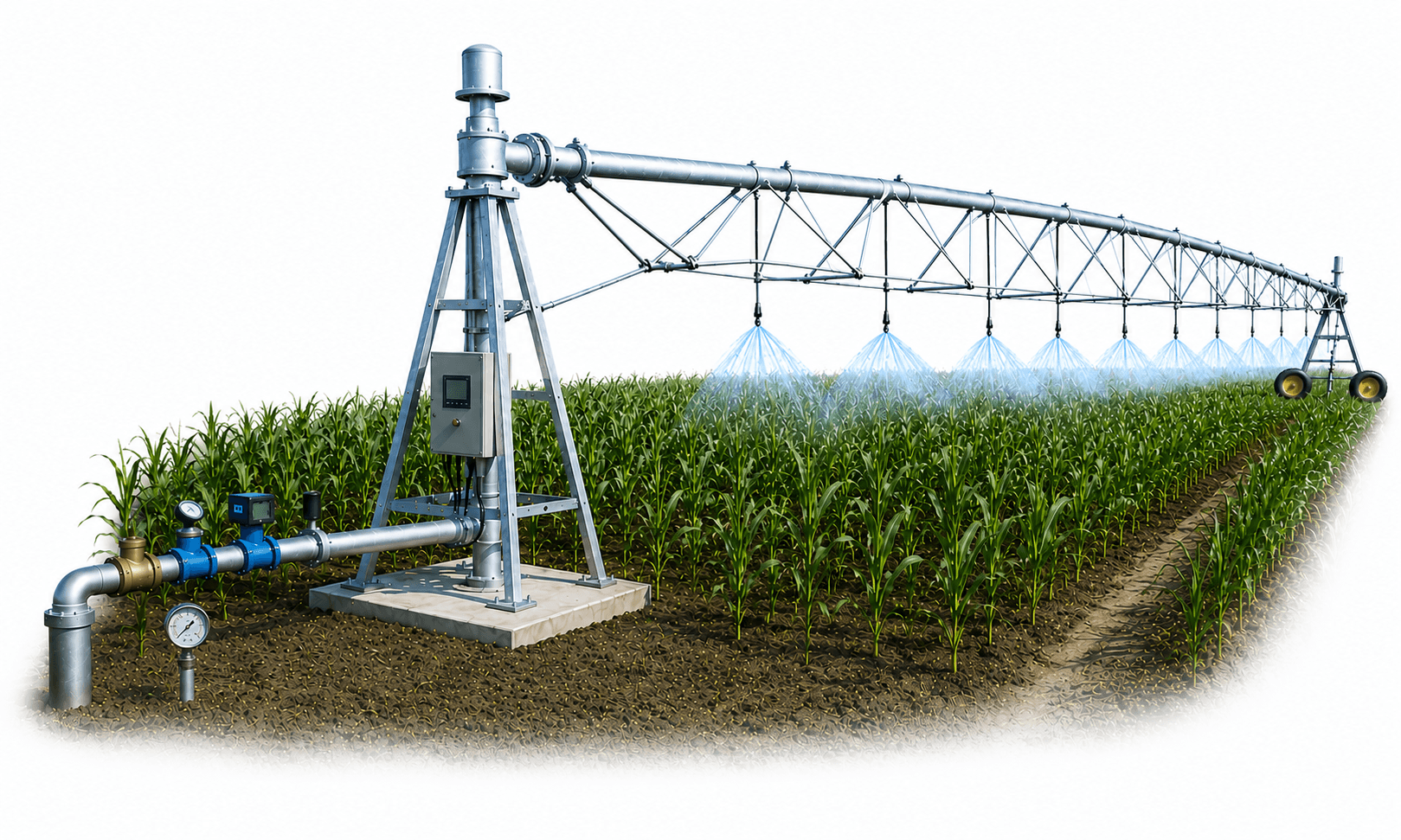

Center Pivot Irrigation application diagram

Conceptual application view. Not for installation design.

Relevant Products5 products

ACI Series MCS-A & MSCS-A Adjustable Mini Current Switches

Solid & Split-Core; Adjustable; Normally-Open (N/O) Miniature Current Switch; 0 to 150 Amps; Contact Rating 1 Amp @ 36 VAC/VDC

Product Data sheet Drawing Playbook

ACI Series MSCT Miniature Analog Current/Voltage Output Transmitter

Split-Core, Miniature Analog Current; 0-5 VDC or 4 to 20 mA Output; 0 to 40 Amps Input Current

Product Data sheet Drawing Playbook

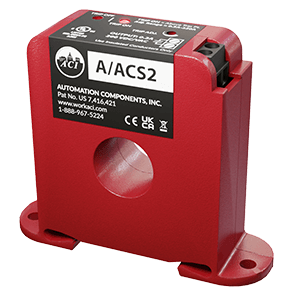

ACI Series ACS2 & ASCS2 Solid & Split-Core Adjustable Current Switches; Monitors Belt Loss, Over & Under Loads

Normally-Open or Normally-Closed Solid State Contact; 0.75" Aperture; Adjustable Trip Points

Product Data sheet Drawing

ACI Series CTA2 & SCTA2 Solid & Split-Core Analog Current Sensors

(Load Trending Applications; Average & RMS Calculations) 4-20 mA Output; 0.75" Aperture; Field Selectable Ranges 0-50 Amps to 0-250 Amps; Accuracy +/- 1% Selected Range

Product Data sheet Drawing

ACI Series SCTE2 (0-5 VDC) & SCTV2 (0-10 VDC) Split-Core Analog Current Sensors

0-5 VDC or 0-10 VDC Output; 0.75" Aperture; Field Selectable Ranges 0-50 Amps to 0-250 Amps; Accuracy +/- 1% Selected Range

Product Data sheet Drawing
