Chiller Plant

Selected Measuring Point

Liquid Flow Meters & Flow Switches

Monitors liquid flow in chiller lines, ensuring proper coolant circulation for efficient heat removal.

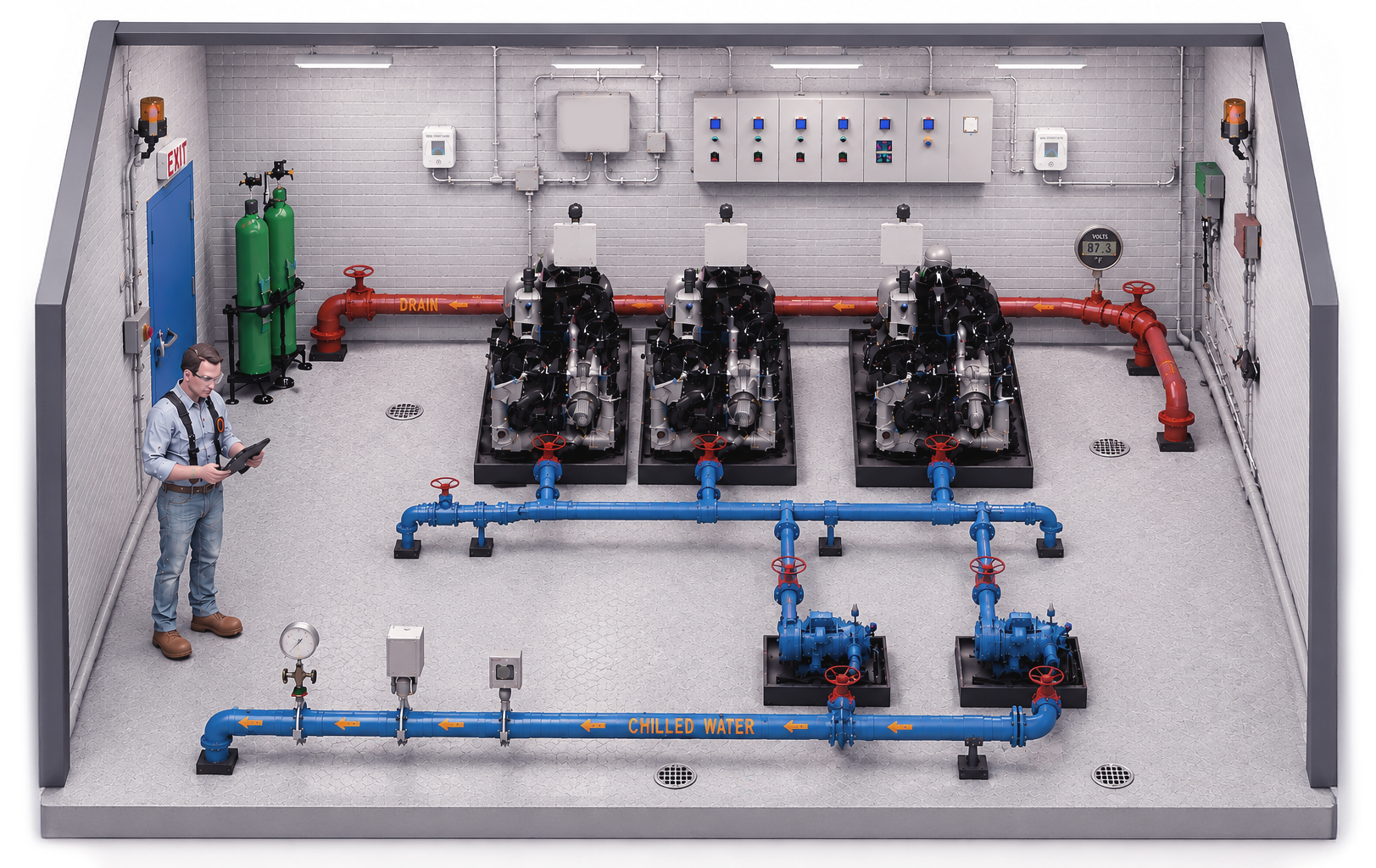

Conceptual application view. Not for installation design.

Relevant Products3 products

Dwyer Series IEF Insertion Electromagnetic Flow Transmitter (Adjustable for Pipe Sizes Ranging from 4" to 36")

Accurate & Reliable Measurement of Fluid Velocity; Flow 0-20 ft/s (0-6 m/s); Current, Voltage, Pulse Outputs, Alarms, OptionalBACnet & Modbus Communication

Product Data sheet Drawing Video Playbook

Dwyer Series TDFS2 Thermal Dispersion Flow Switch (Non-Mechanical, Low Pressure Drop, Large Pipes)

Measure Flow Above or Below User Set Flow Rate; Normally-Open & Normally-Closed NPN Outputs; LED Indication

Product Data sheet Drawing Video

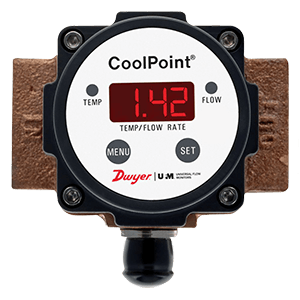

Dwyer Series CP-CN-CT-CX Coolpoint Vortex Shedding Meter; Display; 10:1 or 20:1 Turndown Ratio; For Water & Glycol Mixes, Low Viscosity Fluids

4-20mA, Solid State Relay Output; 316L SS & Brass Body; PEEK Sensor; FKM Seal

Product Data sheet Drawing
